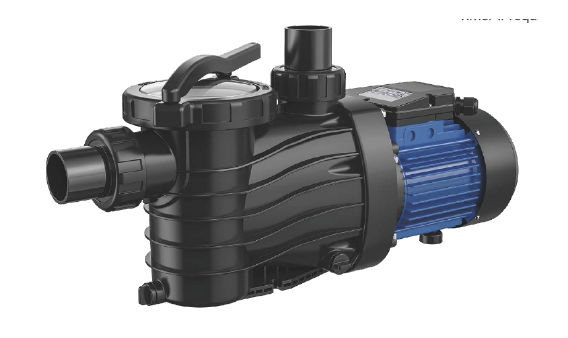

Swimming Pool Pumps
Suitability: Designed specifically for cleaning swimming pools and transferring high volumes of water against a low head.
Key Features: Optimized for high-flow water circulation with durable, non-corrosive materials.
Applications: Ideal for swimming pool filtration and general high-volume, low-head liquid transfer (water temperature not exceeding 45°C).
Installation Requirement: Must be installed in an enclosed environment or sheltered from inclement weather.
Maximum Liquid Temperature: Up to 45°C
Maximum Ambient Temperature: Up to 40°C
Total Suction Lift: Up to 8 m
Motor Type: 2-pole induction motor (n = 2850 rpm)
Duty Rating: Continuous service S1
Insulation Class: Class B
Protection Rating: IP44
Thermal Protection: Built-in thermal protector for single-phase models
Power Supply Options:
Single-Phase: 220V / 50Hz (60Hz available on request)
Three-Phase: 380V / 50Hz (60Hz available on request)
Pump Body: Techno-polymer
Pump Support: Aluminum
Motor Housing: Aluminum
Impeller: Techno-polymer
Motor Shaft: AISI304 Stainless Steel
Mechanical Seal: Ceramic / Graphite
